Industrial Ductwork in mi
Industrial ductwork is a vital part of many types of air filtration systems. Proper ductwork ensures the efficient movement of collected contaminates like oil mist, dust, weld fumes and gases in industrial spaces. Whether you're designing, installing, or maintaining a ductwork system, understanding the components, materials, design considerations, and best practices involved is essential. This article covers the key aspects of industrial ductwork, from types and materials to maintenance and innovations in technology.
1. Types of Industrial Ductwork
Industrial ductwork is designed to carry air, dust, fumes, and other particulates to or from specific areas. The type of ductwork system required depends on the needs of the industrial operation. Here are the main types:
1. Vanstone Ductwork
A traditional bolted flange duct that is usually painted steel, galvanized or stainless steel (SS). These flanges are placed behind turned-out pipe edges or welded to the end of each component. The two flanges at each joint are bolted together, with or without a sealing gasket. Vanstone—This term refers to a technique where a flange is used to mate 90° lips turned onto the pipe or duct component. In this method, the flange is placed onto the pipe, the lip turned back, and the flange is trapped behind it and can spin freely.
2. Spiral Ductwork
Spiral duct is a light weight, light industrial, economical option for dust collection systems. Spiral duct systems must be screwed together and all the joints must be sealed with a silicone caulk or another approved sealant.
Materials Used in Ductwork Fabrication
The material used for ductwork fabrication is crucial to ensuring durability, performance, and safety. Different materials offer varying levels of resistance to heat, corrosion, and pressure. Here are some commonly used materials in industrial ductwork:
1. Galvanized Steel
Galvanized steel is one of the most commonly used materials for ductwork. It is durable, resistant to corrosion, and can withstand high temperatures. The galvanization process coats the steel with a layer of zinc, providing protection from rust and corrosion. This makes galvanized steel ideal for applications requiring durability, such as in exhaust ducts or supply ducts in harsh environments.
2. Stainless Steel
Stainless steel offers enhanced resistance to corrosion, heat, and chemicals, making it a suitable material for industries dealing with aggressive substances, such as chemical manufacturing. Stainless steel is more expensive than galvanized steel but provides superior durability and longevity, especially in environments with high humidity or exposure to corrosive agents.
Design Considerations for Duct Systems
Proper ductwork design is essential for ensuring efficient airflow, maintaining air quality, and reducing energy consumption. Several factors must be considered when designing a duct system:
1. Airflow Requirements
When designing a dust, mist, or smoke collection system, it is essential to evaluate the required airflow volume to effectively capture and transport contaminants. This can be determined by calculating the internal cubic footage of the equipment or process generating the contaminants, assessing the necessary air changes to ensure proper collection, and considering the specific type of operation being performed. These factors help establish the appropriate duct sizing and fan power needed for optimal system performance.
2. Duct Size
The duct size must be carefully chosen to ensure proper transport velocity, preventing contaminants from settling within the ductwork. It should also minimize excessive pressure loss and noise levels. Oversized ducts can increase material costs, while undersized ducts may restrict airflow, reducing efficiency and overall system performance.
Installation Techniques and Best Practices
The installation of industrial ductwork requires precise planning and careful execution to ensure optimal performance. Some best practices include:
1. Proper Sealing
Proper sealing of industrial ductwork is crucial for maintaining system efficiency, preventing air leaks, and ensuring optimal airflow. Air leaks can significantly reduce the performance of a dust collection system by decreasing suction power, increasing energy consumption, and allowing contaminants to escape into the work environment. To maximize efficiency and system longevity, ductwork should be sealed using appropriate methods and materials.
2. Duct Support and Hangers
Ducts must be securely supported throughout their run to prevent sagging or collapsing. Duct supports or hangers should be spaced appropriately to ensure the system is stable and aligned correctly.
3. Insulation
In areas where temperature control is critical, such as dust collection or mist collection where the air stream has a high moisture content and needs to be maintained above the dewpoint temp. Return air ducts can also be insulated to prevent energy losses from having to reheat the collected air.
4. Avoiding Cross-Contamination
In systems that handle both clean air and exhaust, careful design and installation are required to avoid cross-contamination between clean and contaminated air streams. This is particularly important in industries such as pharmaceuticals and food production.
INSULATION OPTIONS FOR DUCTWORK
Insulating ductwork can improve energy efficiency by preventing heat loss or gain, and it can also reduce noise levels in industrial environments. Common insulation materials include:
1. Fiberglass Insulation
Fiberglass insulation is widely used for its ability to reduce heat transfer and its soundproofing qualities. It is commonly used in dust collection ducts and systems requiring temperature regulation.
2. Foam Insulation
Foam insulation is a more rigid material that offers better moisture resistance. It is commonly used in systems exposed to high levels of condensation or outdoor applications.
3. Mineral Wool
Mineral wool is a durable, fire-resistant insulation material commonly used in high-temperature ducts.
Innovations in Ductwork Technology

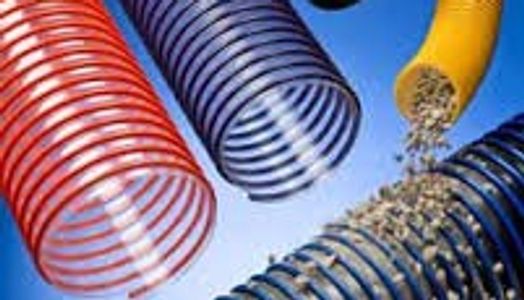

Recent innovations in ductwork technology include the development of smart ventilation systems that use sensors to monitor airflow, temperature, and air quality. These systems allow for real-time adjustments and improve energy efficiency. Additionally, flexible duct materials and lightweight composites are becoming more common, offering better performance and easier installation.
