Dust Collector System Design: A Comprehensive Guide

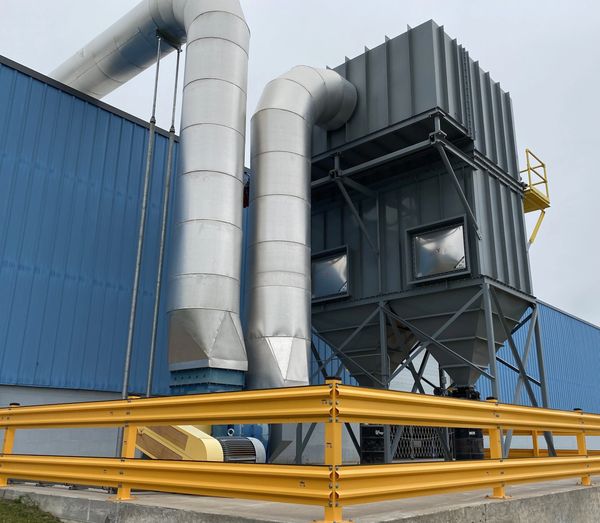

Wood Dust collector / dust collector / baghouse / Scientific dust collector

 Dust collection systems are integral to maintaining clean, safe, and efficient working environments, particularly in industries like manufacturing, woodworking, pharmaceuticals, and food processing. A well-designed dust collection system can effectively capture and remove dust, particulate matter, and other airborne contaminants, thus safeguarding workers' health, improving air quality, and enhancing operational efficiency. The process of designing an effective dust collection system involves several key considerations that ensure optimal performance and compliance with regulatory standards. This article explores the essential aspects of dust collector system design, including considerations for airflow, filtration, system layout, and maintenance.

Learn More
cartridge dust collector / dust collector / weld fume collector / grinding dust collector

Overview of Dust Collection System Design

 Dust collection system design refers to the process of creating an efficient and effective system for capturing and removing dust and airborne particles from industrial processes. The goal is to reduce or eliminate dust from the air to protect the health of workers, prevent contamination of products, and minimize the risk of fire or explosion hazards.


 A well-designed dust collection system is more than just a collection of equipment; it involves a carefully planned and engineered approach that considers airflow, filtration, ductwork, and safety measures. Depending on the type of dust, the design of the system may need to be customized to meet specific needs, such as high-efficiency filtration for fine dust or explosion protection for combustible dust.


 A properly designed dust collection system improves the working environment, extends equipment life, reduces maintenance costs, and helps comply with regulatory standards.


Learn More

Key Design Considerations

 Designing an effective dust collection system requires careful consideration of several factors to ensure optimal performance and efficiency. Key design considerations include:



1. Dust Characteristics

Understanding the characteristics of the dust generated by the process is crucial. Different types of dust—such as wood, metal, chemical, or pharmaceutical dust—vary in size, weight, and combustibility. The dust's physical properties will determine the filtration requirements, system size, and material choices.

  • Particle Size: Fine dust particles may require more sophisticated filtration systems, such as HEPA filters, while coarser dust may be effectively managed with bag filters or cyclones.
  • Combustibility: Combustible dust, such as that generated by metals, wood, or certain chemicals, requires explosion-proof equipment and appropriate safety measures.
  • Moisture Content: Dust with higher moisture content may require special handling to prevent clogging in filters and ducts.



2. Airflow Requirements

Airflow is the primary force that moves dust particles through the system, so it is vital to design a system that provides adequate airflow to capture and transport the dust without causing excessive pressure loss or energy waste. The airflow requirements will depend on the volume of air to be processed, the size of the dust particles, and the layout of the system.



3. System Efficiency

Efficiency is a key consideration in dust collection system design. Efficient collection not only reduces environmental contamination but also improves energy use. Optimizing airflow, minimizing energy consumption, and ensuring high filtration efficiency are all crucial aspects of an efficient dust collection system.



4. Compliance with Regulations

Dust collection systems must comply with various regulatory standards and safety guidelines, depending on the industry and location. Compliance with OSHA (Occupational Safety and Health Administration), NFPA (National Fire Protection Association), and other relevant agencies ensures that the system meets health and safety requirements.


Learn More

Types of Dust Collection Systems

 There are several types of dust collection systems, each with its specific applications and advantages. The selection of the right system depends on factors such as the type and volume of dust produced, the space available, and the budget. The most common types include:



1. Cyclone Dust Collectors

Cyclone dust collectors use centrifugal force to separate dust from the airflow. These systems are particularly effective for larger, heavier dust particles and are commonly used in industries such as woodworking and mining. Cyclones can be used as the primary collection system or as pre-filters in multi-stage filtration systems.



2. Baghouse Dust Collectors

Baghouse dust collectors are the most widely used type of dust collection system. They use fabric filter bags to capture dust particles from the airflow. Baghouse systems are highly efficient and can handle both coarse and fine dust. They are suitable for a wide range of industries, including cement manufacturing, metalworking, and food processing.




3. Cartridge Dust Collectors

Cartridge dust collectors use cylindrical filter cartridges made of pleated fabric or other filter materials. They are often used in smaller, more confined spaces and are highly effective at capturing fine particles. Cartridge collectors are common in industries such as pharmaceuticals, automotive, and electronics.



4. Wet Scrubbers

Wet scrubbers use water or other liquids to trap dust and particulate matter. These systems are particularly useful for collecting hazardous or sticky dust that may not be effectively managed by dry filtration systems. Wet scrubbers are commonly used in industries dealing with chemical processing, welding, and power generation.



5. Portable Dust Collectors

Portable dust collectors are compact, mobile units that can be moved to different locations within a facility. These systems are ideal for applications where dust is generated at multiple points or where the collection equipment needs to be easily relocated. They are often used in smaller workshops, construction sites, and maintenance areas.

Learn More

Airflow and Duct Design

 Proper airflow is essential for an efficient dust collection system. The design of the airflow and ductwork determines how effectively dust is captured and transported to the collection unit. When designing airflow and duct systems, consider the following factors:



1. Airflow Velocity

The velocity of the airflow in the ductwork must be high enough to transport dust effectively but not so high that it creates excessive friction and pressure drop. High velocity can lead to increased energy consumption, while low velocity can result in dust settling within the ducts.



2. Duct Sizing

Ducts must be sized according to the airflow requirements. Undersized ducts can cause excessive resistance, leading to a loss of efficiency, while oversized ducts can increase costs without improving performance. The ductwork must be designed to maintain a balance between sufficient airflow and minimal energy usage.



3. Minimizing Bends and Turns

Minimizing bends and turns in the ductwork is important for maintaining smooth airflow and reducing resistance. When designing the layout, avoid sharp angles, as they can cause turbulence, reduce airflow, and increase the chance of dust buildup.



4. Duct Material

The material used for the ducts should be selected based on the type of dust, system requirements, and the working environment. Materials such as galvanized steel, stainless steel, PVC, or fiberglass may be chosen based on factors like durability, corrosion resistance, and ease of cleaning.

Filtration Options and Efficiency

 Filtration is one of the most critical components of dust collection systems. The filter type and its efficiency play a significant role in the system’s overall performance. The main filtration options include:



1. Bag Filters

Bag filters are fabric-based filters that capture dust through a combination of mechanical filtration and surface filtration. They are highly effective for capturing a wide range of dust types, from coarse to fine particles. Bag filters require regular cleaning or replacement to maintain their efficiency.



2. Cartridge Filters

Cartridge filters use pleated filter media, offering a high surface area for dust collection. These filters are more compact than bag filters and are often used in systems with limited space. They are highly effective for fine dust particles and are easy to replace and maintain.



3. HEPA Filters

High-Efficiency Particulate Air (HEPA) filters are designed to capture extremely fine particles, as small as 0.3 microns. These filters are used in environments where clean air is essential, such as in pharmaceutical manufacturing, laboratories, and food processing.



4. Activated Carbon Filters

Activated carbon filters are used to capture odors, vapors, and chemical contaminants that may be present in the dust-laden air. These filters are often used in environments where chemical or volatile substances are being processed.

Learn More

Selecting the Right Dust Collector

 Choosing the right dust collector depends on several factors, including the type of dust being collected, the volume of dust, space constraints, and the system's filtration requirements. Consider the following when selecting a dust collector:



  • Type of Dust: Different types of dust require different filtration technologies. For example, fine dust like pharmaceutical powders may require HEPA filters, while larger particles like sawdust can be captured by baghouse filters.
  • Dust Volume: A system must be designed to handle the expected dust load, which includes the volume of dust produced, the airflow requirements, and the system's capacity.
  • Space Availability: Consider the available space for installation. Some systems, like portable dust collectors, are ideal for smaller spaces, while larger systems may require extensive floor space and ceiling height for ductwork.
  • Budget: Dust collection systems vary in cost, and the price will depend on the system's size, complexity, and features. A customized solution may be more expensive, but it can provide long-term cost savings through better efficiency and lower maintenance costs.

Learn More

System Layout and Equipment Placement

 The layout of the dust collection system plays a crucial role in its efficiency and effectiveness. Key considerations when planning the system layout include:



1. Dust Source Locations

Place the dust collection system as close as possible to the dust sources to minimize the distance dust must travel through ducts. This helps reduce airflow resistance and energy consumption.



2. Ductwork Routing

Design ductwork routes to avoid unnecessary turns and bends. Straight duct runs help reduce pressure loss and maintain airflow efficiency.



3. Centralized vs. Localized Collection

A centralized system collects dust from multiple sources via a network of ducts, while localized systems capture dust directly at the point of generation. The layout will depend on the facility’s size, the number of dust sources, and the required airflow.

Maintenance and Operational Guidelines



To ensure the longevity and efficiency of a dust collection system, regular maintenance is essential. Key maintenance tasks include:

  • Replacing Filters: Filters should be replaced regularly, typically this will be every 1-3 years.
  • Checking for Leaks: Leaks in ducts or equipment can reduce efficiency and waste energy. Regular inspections are necessary to identify and fix leaks.
  • Inspecting Fans and Motors: Ensure that fans and motors are operating properly, as malfunctioning components can significantly reduce system performance.

Learn More

Noise Control Measures



Dust collection systems can generate significant noise, especially in larger industrial settings. To mitigate noise levels, consider the following measures:

  • Acoustic Insulation: Install noise-reducing materials around equipment and ductwork.
  • Noise Barriers: Use barriers to contain noise and reduce its spread throughout the facility.
  • Selecting Low-Noise Fans: Opt for fans designed to operate quietly, especially if the system is used in sensitive environments.

Learn More

Regulatory Compliance and Safety Standards

 Compliance with local, national, and international safety and environmental standards is crucial for dust collection systems. Key regulatory bodies and standards include:



  • OSHA: OSHA sets regulations for air quality and worker safety, ensuring that dust levels do not exceed harmful thresholds.
  • NFPA: NFPA 654 provides guidelines for fire and explosion hazards related to combustible dust.
  • EPA: The Environmental Protection Agency sets air quality standards that dust collection systems must meet to reduce airborne particulate matter.


 By adhering to these standards, businesses can ensure the safety of their workers and the environment while also reducing the risk of fire and explosion hazards.


 In conclusion, designing an effective dust collection system involves careful planning, consideration of various factors, and a deep understanding of the specific requirements of the facility. By considering airflow, filtration options, system layout, and maintenance needs, businesses can ensure that their dust collection system operates efficiently, improves air quality, and meets regulatory standards.
